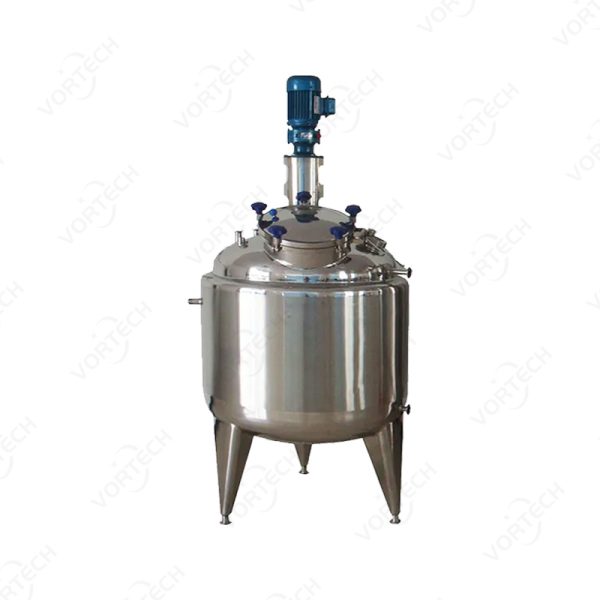

Stainless Steel Mixing Tank
- Volume: 100Liters
- SUS304 stainless steel structure.
- Tri-layer structure, steam heating or electric heating mode, insulated and jacketed.

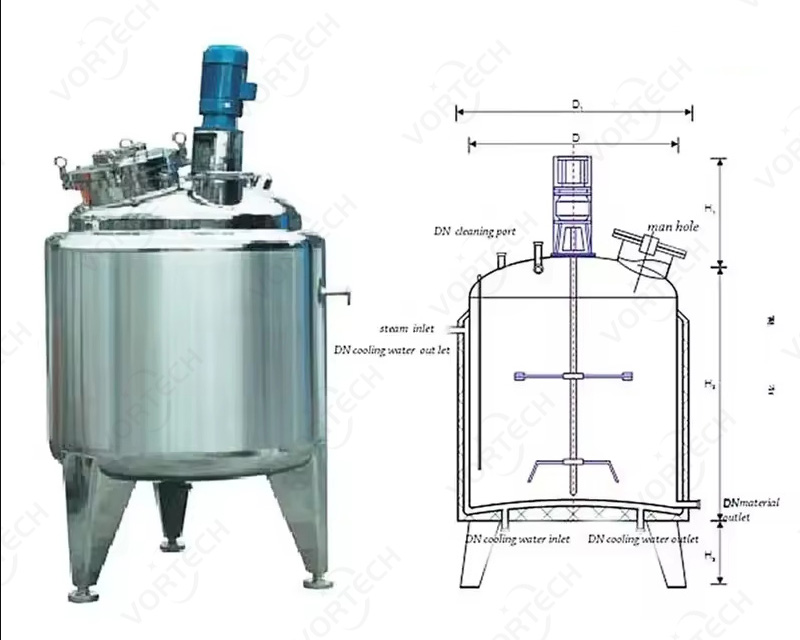

- Mounted with agitator, CIP cleaning ball, and breather valve.
- A mixing tank to mix with other ingredients for sauce making, as well to sterilize the product inside by steam heating.
- Dimension(L*W*H): 520*520*900mm
- E-mail: Angel@vortechglobal.com
- Categories: Tomato Processing Machine, Vacuum Evaporation Section
- Inquiry Now
Product Details
The Role of the Stainless Steel Mixing Tank, and Sterilization Tank in the Tomato Paste Production Process:
Ensures uniform mixing of ingredients and sterilizes the tomato paste, eliminating harmful microorganisms and ensuring the paste is safe for consumption while maintaining its flavor and quality.
Process It Belongs To:
- The post-processing stage, specifically after concentration, blends the tomato paste evenly and ensures it undergoes sterilization before packaging.
Related Equipment Before:
- Scrape Type Vacuum Evaporator – for concentrating the tomato paste by removing excess moisture while maintaining its flavor and color.
- Raw Tomato Paste Storage Tank – for storing the tomato paste before it enters the mixing and sterilizing stage.
Related Equipment After:
- Packaging System – for filling the sterilized and mixed tomato paste into containers for distribution.
- Sterilization Equipment – for ensuring that the paste is free from any remaining microbial contaminants.
Product Parameter:
| Material | SUS304 |
| Working Capacity | 50L to 20000L, even more large. |
| Operate pressure | Atmosphere |
| Layer | Single/ Double(heating)/ Three layers(Insulation); |
| Thickness | 2mm- 12mm |
| Heating or cooling |
|
| Top | Dome or conical top or flat |
| Bottom | Dome or conical top or flat |
| Impeller type | Paddle /propeller/anchor / magnetic stirrer / high shear homogenizer mixer |
| Stirring speed (rpm) | 0-300 |
| Polishing | Mirror polish inside and outside |
| Component
(Optional) |
|
