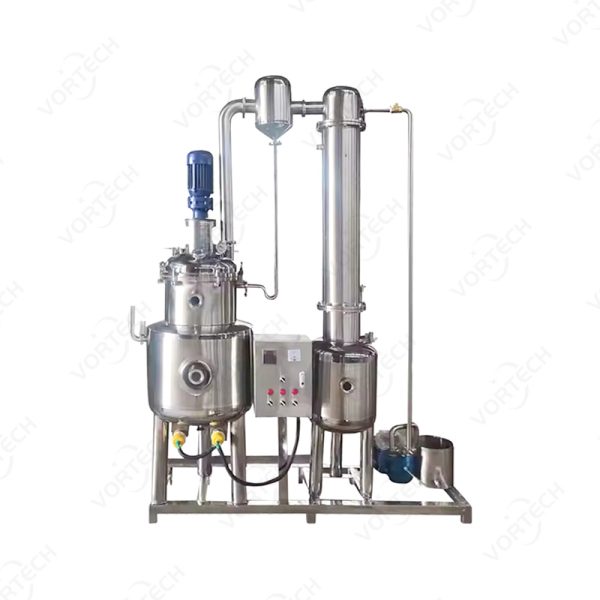

Scrape Type Vacuum Evaporator
- Volume: 1000L-1500L Volume.
- SUS304 Stainless Steel for the main structure.
- Special structure especially for the concentration of fruit paste/puree (viscous product).
- Incorporated Italian technologies together with our own innovation.
- Input: 4.5-5.5% Brix tomato pulp.
- Output: 28-30%Brix tomato paste(100% pure).
- Dimension: 2600*1400*3100mm.
- E-mail: Angel@vortechglobal.com
- Categories: Tomato Processing Machine, Vacuum Evaporation Section
- Inquiry Now
Product Details
Product Component:
The vacuum juice concentrator includes a vacuum concentration tank, vapor-liquid separator, condenser, liquid receiver, and vacuum system. The components that come into touch with the liquid are composed of premium 304 stainless steel, which satisfies GMP mechanical requirements.
The Role of the Scrape Type Vacuum Evaporator in the Tomato Paste Production Process:
Removes excess moisture from tomato paste under vacuum conditions, concentrating the product while preserving its flavor, color, and nutritional content by preventing overheating.
Process It Belongs To:
- Concentration process, specifically after the raw tomato paste has been refined and is ready to be concentrated to a thicker consistency.
Related Equipment Before:
- Raw Tomato Paste Storage Tank – for holding the tomato paste after refining and before concentration.
- Pulping and Refining Machine – for separating solids like skins and seeds from the tomato juice, creating a smooth paste.
Related Equipment After:
- Sterilization Equipment – for pasteurizing the concentrated tomato paste to ensure it is microbiologically safe.
- Packaging System – for filling the concentrated and sterilized tomato paste into containers for distribution.

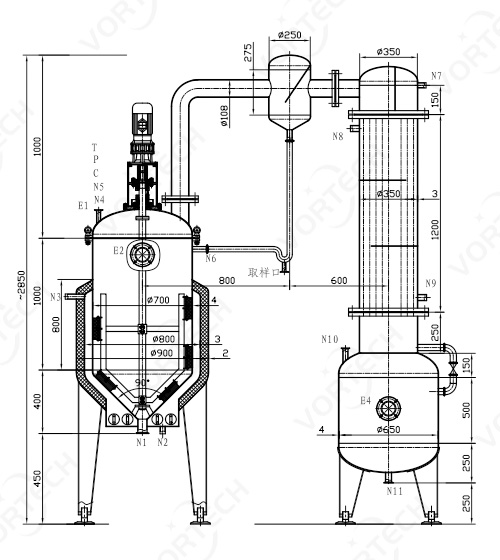

Product Parameter:
| Model | Equipment Size(L) | Evaporation(KG/H) | Working Pressure in Jacket(Mpa) | Vacuum Degree in Tank(Mpa) | Vacuum Pump Power(KW) | Equipment Weight（KG） | Agitator Speed（RPM） |
| VEC100 | 150 | 100 | ≤0.1MPa | -0.08Mpa | 1.5 | 320 | (According to customer requirements) |
| VEC200 | 250 | 200 | 2.2 | 460 | |||
| VEC500 | 600 | 500 | 3 | 680 | |||
| VEC1000 | 1000 | 1000 | 4 | 860 | |||
| VEC2000 | 2000 | 2000 | 5.5 | 1120 | |||
| VEC3000 | 3000 | 3000 | 7.5 | 1300 | |||
| VEC5000 | 5000 | 5000 | 11 | 1700 | |||
| We can customize the equipment according to your requirements. | |||||||
